UV Set for Water Purifier

Compact UV Treatment for Your Water Purifier

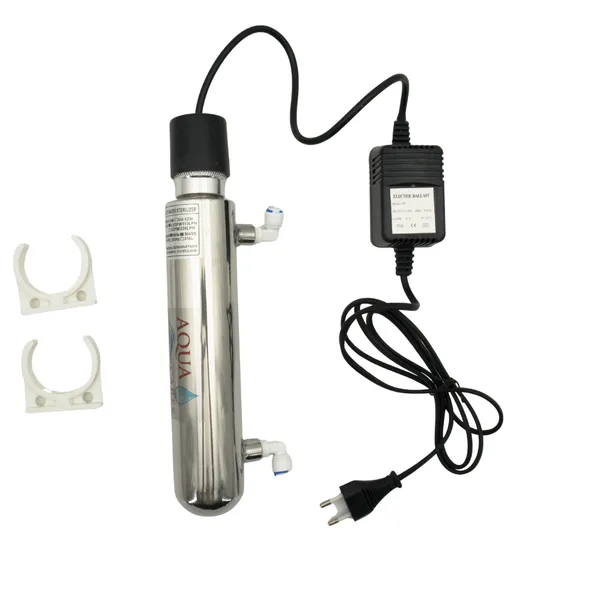

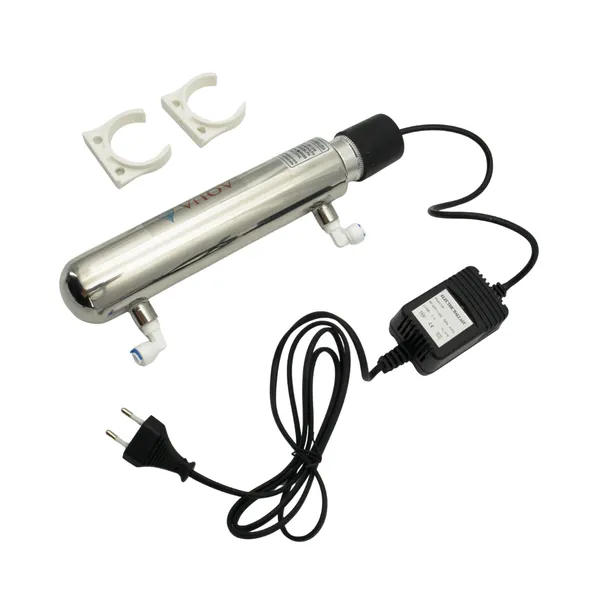

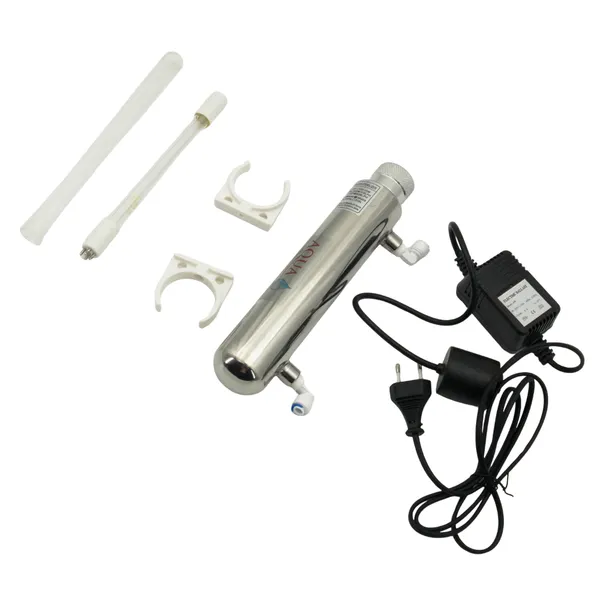

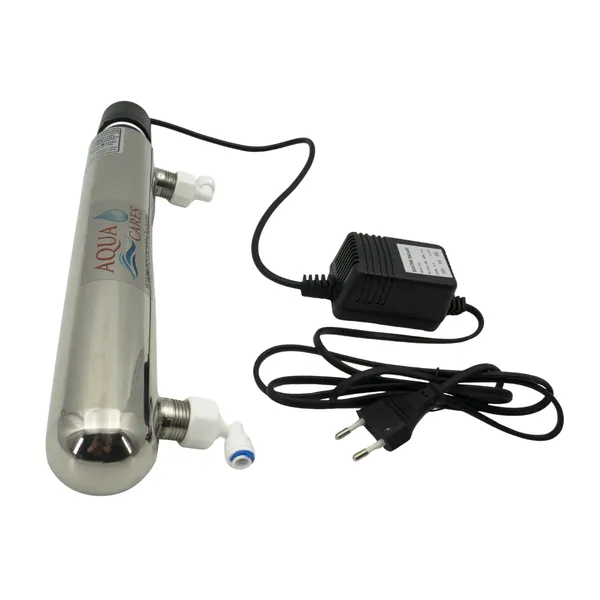

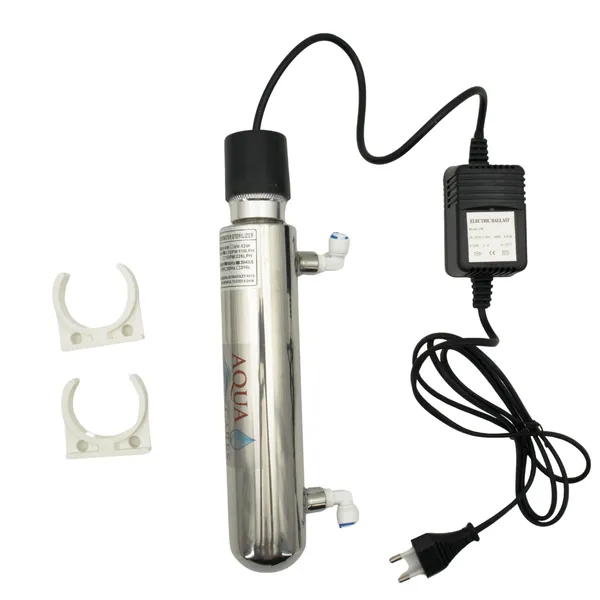

The INV-UV-SERIES adds an ultraviolet treatment stage to a compatible water-purification system. Choose the 6W or 12W set to match your installation. Each set combines a stainless-steel chamber, quartz sleeve, UV lamp and matching ballast power supply.

Practical Features

• 304 stainless-steel treatment chamber
• Replaceable T5 UV lamp protected by a quartz glass sleeve
• UV treatment without adding disinfectant chemicals
• Compact design with two mounting clips
• 6W and 12W options for different system requirements

Choose Your Model

INV-UV-6W — UV Set 6W for Water Purifier: the default option, with a flow rate of 1.8 L/min and ¼-inch female threads fitted with quick connectors for ¼-inch tubing.

INV-UV-12W — UV Set 12W for Water Purifier: a 3.7 L/min option with ½-inch male-thread connections, including for appropriately designed water-vending installations.

Compatible replacement lamps are available in our UV T5 Lamp series.

Installation and Care

Install on a suitable pretreated-water line with compatible fittings. Cambodia’s nominal mains supply is 230 V AC, 50 Hz; check the supplied ballast’s input label and confirm electrical compatibility before connecting. Keep flow within the selected model’s stated limit. UV performance depends on water quality, flow rate, lamp condition and a clean quartz sleeve; UV treatment does not replace the other treatment stages needed for your water source.

Disconnect the power and isolate the water supply before servicing. Never look at an operating UV lamp or expose skin to its light. Keep electrical components dry. Inspect and clean the quartz sleeve according to the equipment instructions, and replace the lamp on the recommended service schedule. Avoid frequent switching on and off.

For model selection, replacement lamps or installation support, chat with Aqua Cares Cambodia on Telegram.
