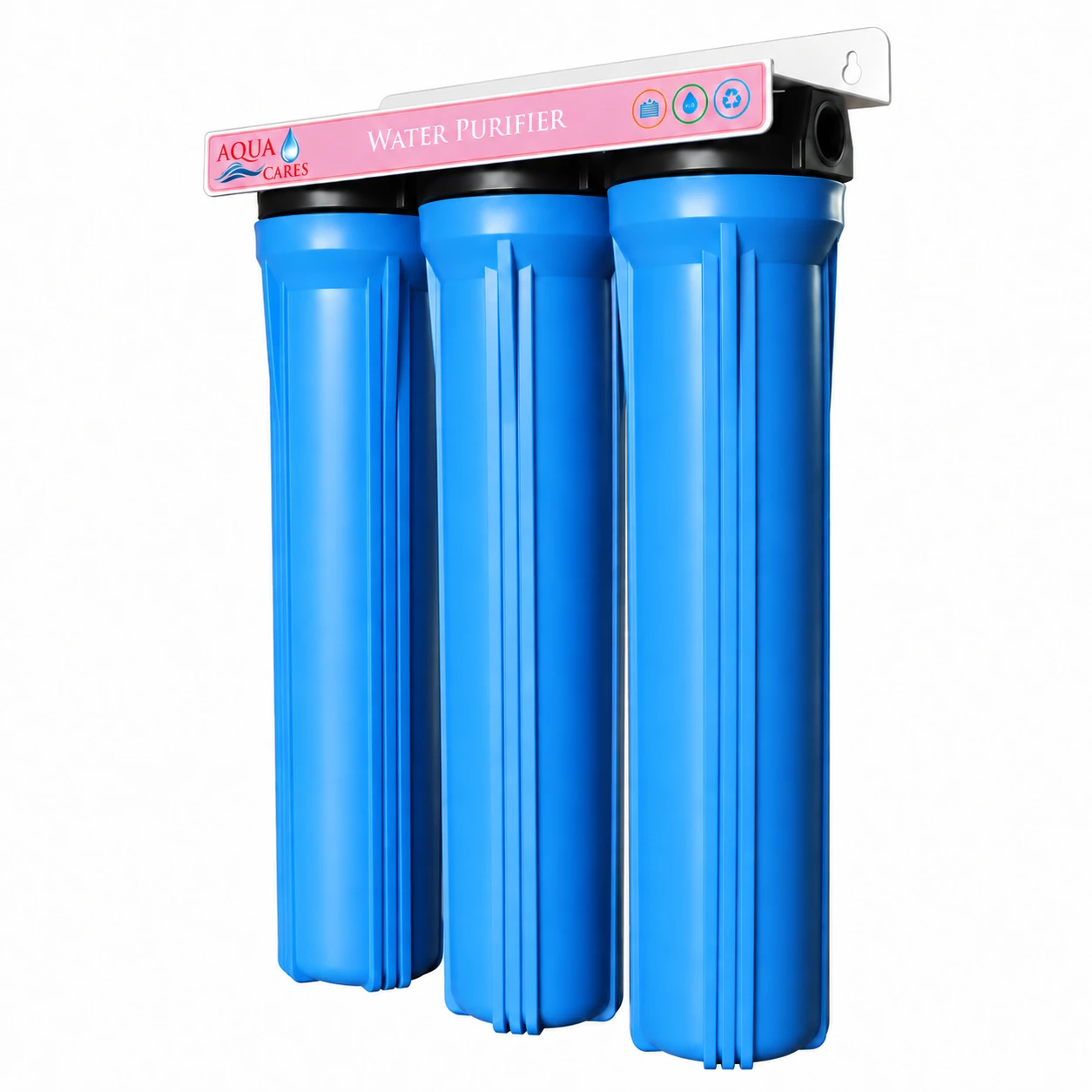

Angled view of INV-WF03-V2 with three blue filter housings and an Aqua Cares label on the mounting bracket

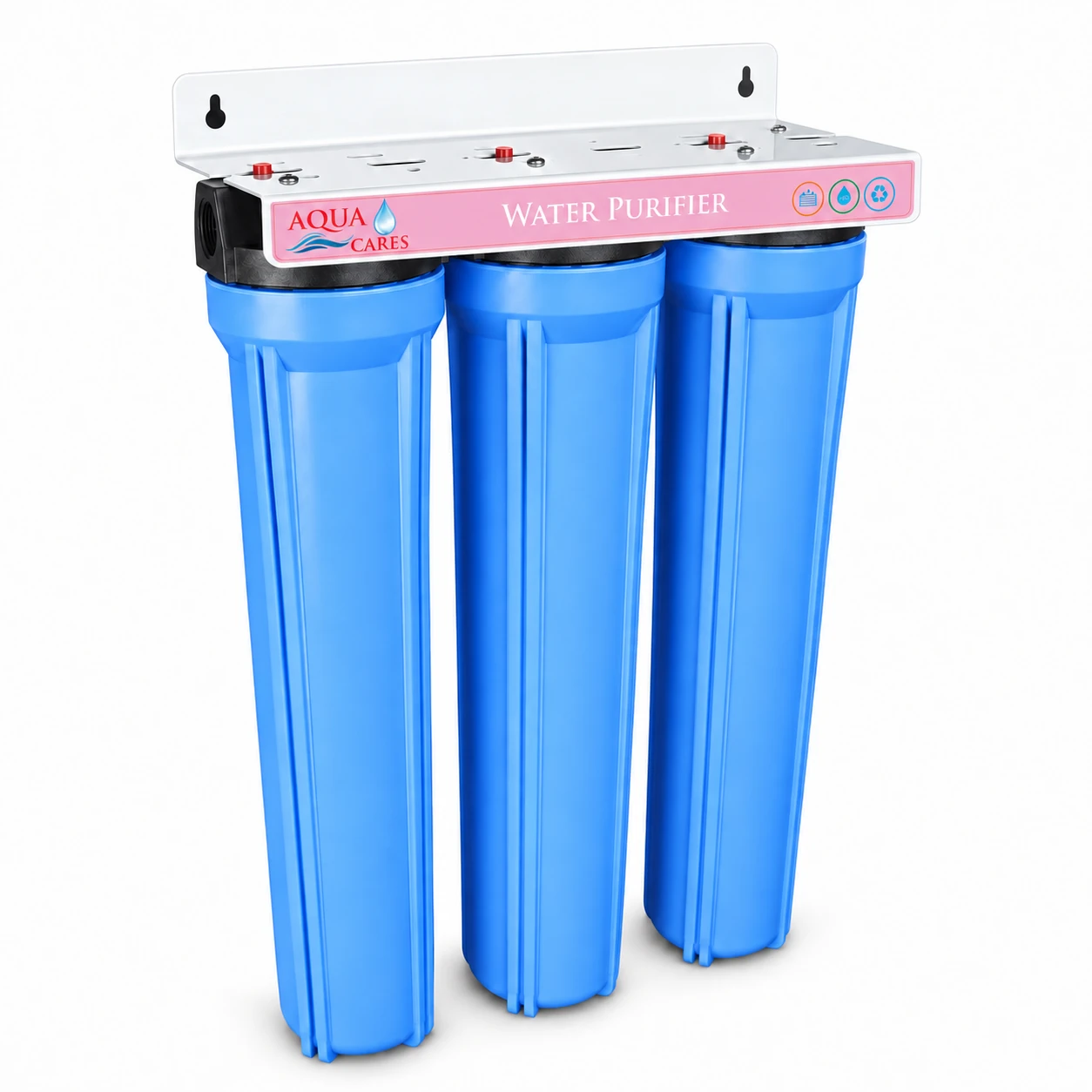

INV-WF03-V2 showing the Aqua Cares label, white mounting bracket, pressure-release buttons and three blue housings
Three open blue INV-WF03-V2 housings with cartridges, detached filter heads, mounting bracket and housing wrench

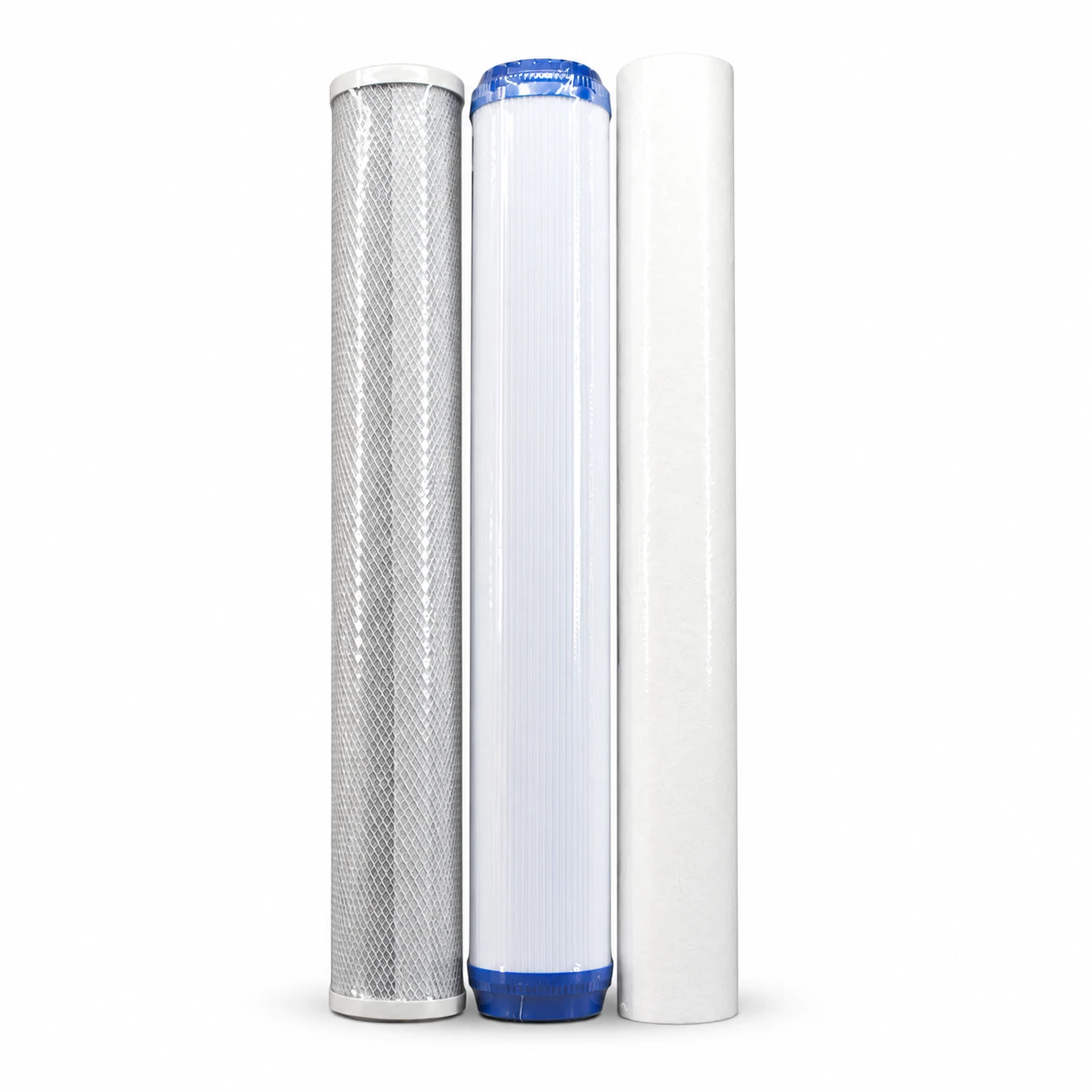

Three 20-inch water filter cartridges standing side by side on a white background
Angled view of INV-WF03-V2 with three blue filter housings and an Aqua Cares label on the mounting bracket
INV-WF03-V2 showing the Aqua Cares label, white mounting bracket, pressure-release buttons and three blue housings
Three open blue INV-WF03-V2 housings with cartridges, detached filter heads, mounting bracket and housing wrench
Three 20-inch water filter cartridges standing side by side on a white background
Full coil of white P-DN6 PE water filter pipe
6.5 mm PE Water Filter Pipe (1/4″) – White
Back to products
HC-01 wall-mounted hot and cold water dispenser, angled front view
Instant Hot and Cold Manual Type

3-Stage 20″ Whole House Water Filtration System On Blue Coated Housing with Iron Bracket V2

Bring three stages of filtration to your home with the INV-WF03-V2. Its 20″ PP, UDF and CTO cartridges help reduce sediment, chlorine and unpleasant odours in municipal tap water, without electricity. Features blue coated housings, an iron mounting bracket and a 1/2″ (DN15) connection. Flow rate: 7–12 L/min. Includes a 1-year warranty against manufacturing defects, including leakage caused by a manufacturing defect. For general household use; not intended for direct drinking.

Contact for Price & Availability
Add to quote
TELEGRAM CHAT
SKU: INV-WF03-V2 Category:
Overview

Practical Water Filtration for Your Home

Make everyday household water filtration simple with the INV-WF03-V2. This three-stage system combines 20″ PP, UDF and CTO cartridges to help reduce sediment, chlorine and unpleasant odours in municipal tap water. Blue coated housings and an iron mounting bracket bring the three stages together in one installation, with no electricity required.

Three Stages Working Together

  1. 20″ PP Sediment Filter – Captures sand, rust and suspended particles at the first stage.
  2. 20″ UDF Granular Activated Carbon – Helps reduce chlorine and unpleasant odours.
  3. 20″ CTO Carbon Block – Adds a further stage of carbon filtration for additional chlorine and odour reduction.

Designed for Everyday Use

  • No electrical connection needed: Operates using incoming water pressure.
  • Replaceable cartridges: Service the individual filters as needed to maintain filtration performance.
  • Three housings, one bracket: An iron mounting bracket holds the filtration stages together.
  • For municipal tap water: A practical filtration option for general household use.
  • 1/2″ (DN15) connection: For installation with compatible plumbing fittings.

Installation Requirements

Ensure the inlet pressure is within 1–4 bar. Confirm thread compatibility and mounting arrangement before installation. Allow access beneath the housings for cartridge changes.

Keep Your Filters Performing Well

Regular cartridge replacement helps maintain filtration performance. Use the following schedule as a guide:

Filter Recommended Replacement Interval
20″ PP Sediment Filter 3–6 months
20″ UDF Granular Activated Carbon 6 months
20″ CTO Carbon Block 6 months

Replacement intervals vary depending on incoming water quality and daily usage. Follow the supplied instructions for flushing and maintenance.

Warranty

Includes a 1-year warranty against manufacturing defects, including leakage caused by a manufacturing defect.

Water use: Designed for general household filtration. The filtered water is not intended for direct drinking; appropriate additional treatment and verification are required for drinking-water use.

Specifications
ModelINV-WF03-V2
Number of Stages3
Housing Size20″
Connection Size1/2″ (DN15)
HousingBlue coated housing
Mounting BracketIron bracket
Filter Media20″ PP + UDF + CTO
Recommended Water SourceMunicipal tap water
Water Temperature5–50 °C
Rated Power0 W
Dimensions400 × 155 × 650 mm
Operating Pressure1–4 bar
Flow Rate7–12 L/min
Warranty1 year against manufacturing defects, including leakage caused by a manufacturing defect
Recommended Filter Replacement20″ PP: 3–6 months; 20″ UDF: 6 months; 20″ CTO: 6 months
In the Box

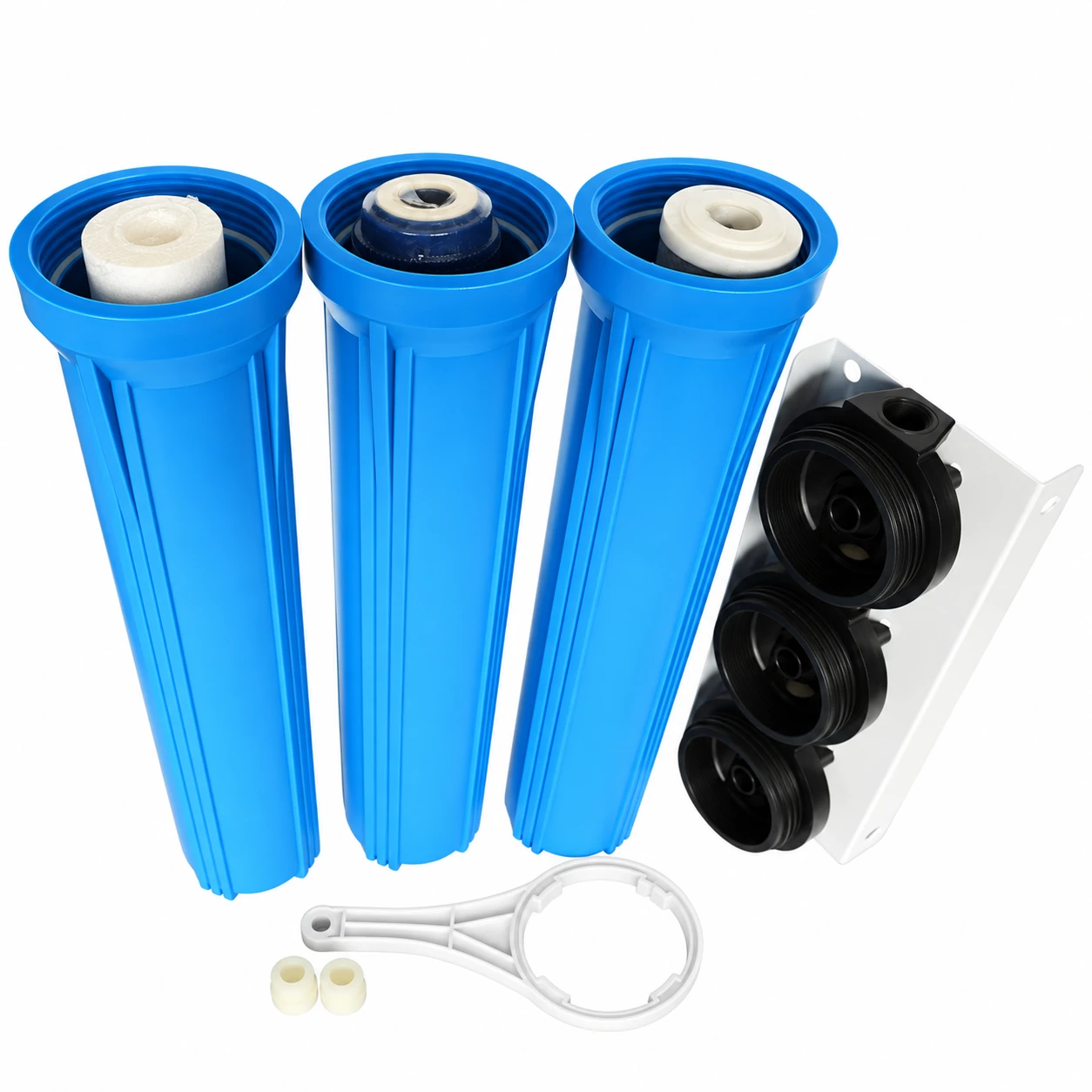

Three open blue INV-WF03-V2 housings with cartridges, detached filter heads, mounting bracket and housing wrench

INV-WF03-V2 three-stage whole-house water filtration system with PP, UDF and CTO cartridges and iron mounting bracket, 21 mm male-thread connection fittings for the purifier, Filter-housing wrench.
