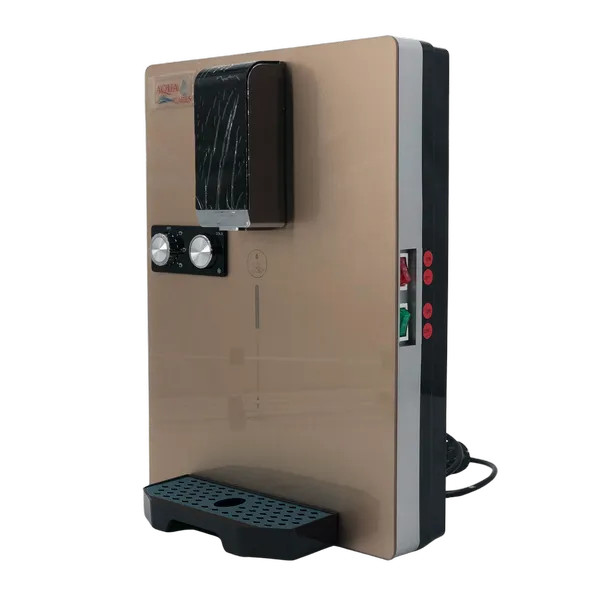

HC-01 wall-mounted hot and cold water dispenser, angled front view
HC-01 hot and cold water dispenser with mounting bracket and water tubing

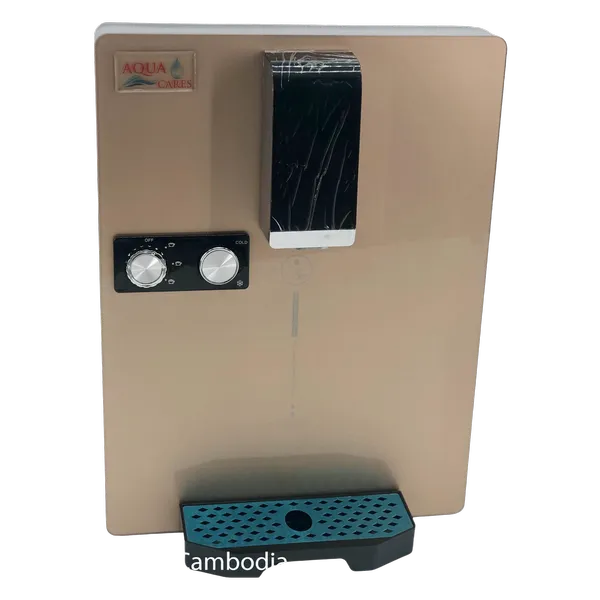

Front view of HC-01 manual hot and cold water dispenser

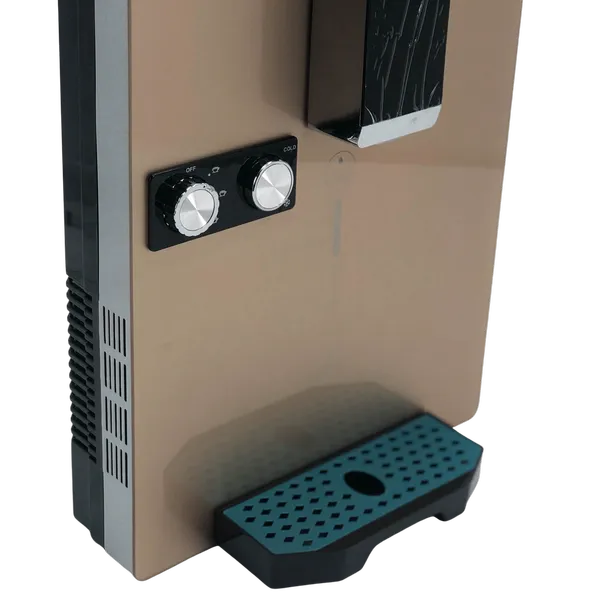

Mechanical control knobs and drip tray on HC-01 water dispenser

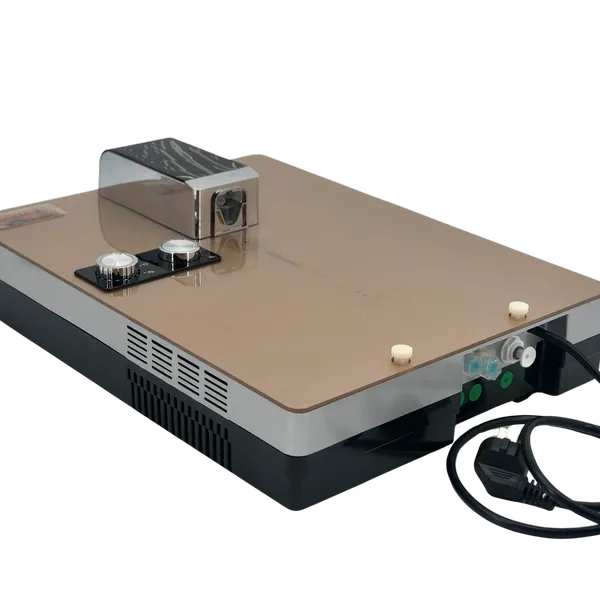

Rear connections and power cable on HC-01 hot and cold water dispenser
Angled view of INV-WF03-V2 with three blue filter housings and an Aqua Cares label on the mounting bracket
3-Stage 20" Whole House Water Filtration System On Blue Coated Housing with Iron Bracket V2
Back to products
Front view of the FLT-PP-10 10-inch polypropylene sediment filter
PP (Polypropylene Sediment Filter) 10 Inch

Instant Hot and Cold Manual Type

Wall-mounted hot and cold water dispenser with simple mechanical controls and a slim glass-front design. Model HC-01 features 2,000 W heating power and operates on 220 V / 50 Hz. Includes a mounting bracket and water tubing.

Contact for Price & Availability
Add to quote
TELEGRAM CHAT
SKU: HC-01 Category:
Overview

Hot and Cold Water with Simple Manual Control

The Aqua Cares HC-01 brings convenient hot and cold water dispensing into a slim, wall-mounted design. Its mechanical controls make everyday operation straightforward, while the tempered-glass front offers a clean finish for your home.

Key Features

  • Instant heating for convenient hot-water dispensing
  • Hot and cold water from one compact unit
  • Simple manual mechanical controls
  • Wall-mounted design helps keep worktops clear
  • ABS housing with a tempered-glass front
  • Integrated drip tray beneath the dispensing outlet

Included Accessories

Includes a wall-mounting bracket and water tubing.

Installation and Use

Connect to a suitable potable-water supply at 1–4 bar and a properly earthed 220 V / 50 Hz electrical supply. Mount the unit securely and keep its ventilation openings clear. Follow the operating instructions when filling and starting the unit, and check all water connections for leaks before use.

Hot water can cause burns. Keep children away from the hot-water controls and outlet.

Care

Keep the dispensing area and drip tray clean. Disconnect the electrical supply before cleaning or servicing, and follow the appliance instructions for maintenance.

Warranty: 1-year warranty against manufacturing defects.

Specifications
ModelHC-01
Control TypeManual mechanical controls
Installation TypeWall-mounted
Water TemperatureHot and cold
Rated Voltage220 V
Rated Frequency50 Hz
Rated Power2,000 W
Inlet Pressure1–4 bar
Heating Capacity20 L/h at ≥90°C
Cooling Capacity1 L/h at ≤12°C
Dimensions (W × D × H)320 × 80 × 430 mm
HousingABS and tempered glass
Electrical Protection ClassClass I
Included AccessoriesMounting bracket and water tubing
Warranty1 year against manufacturing defects
In the Box

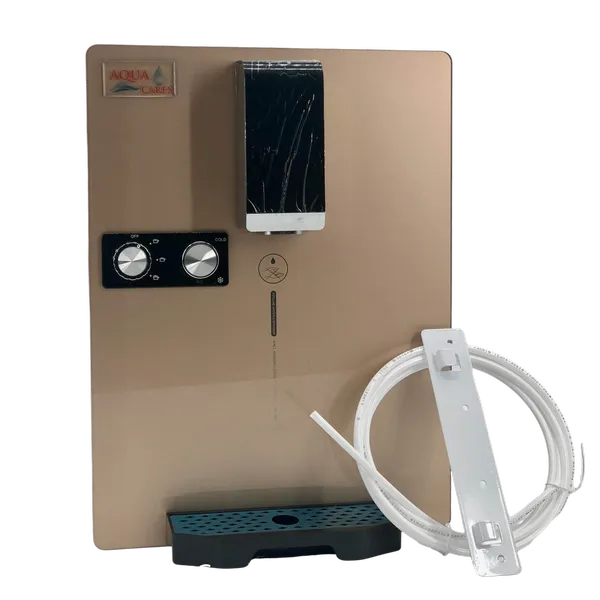

HC-01 hot and cold water dispenser with mounting bracket and water tubing

HC-01 hot and cold water dispenser, 5 m PE water pipe, Wall-mounting bracket (hanging support), T-fitting for connection to the water purifier.

Support
Technician Installing Under-Sink Purifier
https://acc.khmeryeung.com/wp-admin

Product Support

Need help with installation, operation, maintenance or replacement filters and spare parts? Aqua Cares provides reliable local after-sales support for this product.

How Can We Help?

  • Installation and operating guidance
  • User manual and product documents
  • Replacement filters and spare parts
  • Maintenance and troubleshooting assistance
  • Support by phone, Telegram or email
