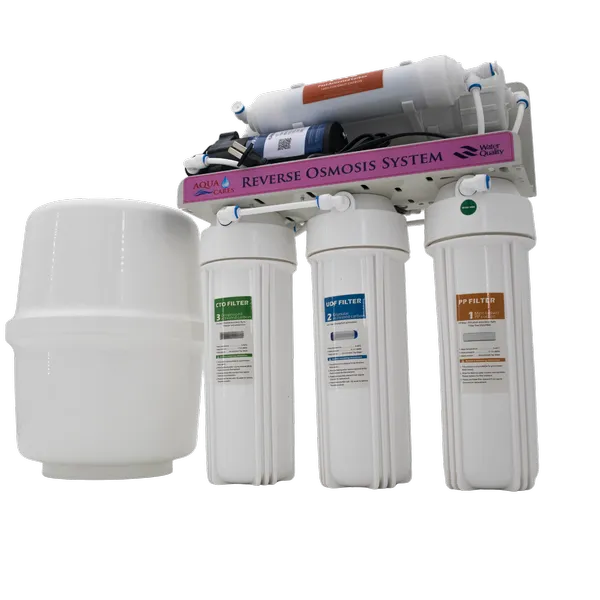

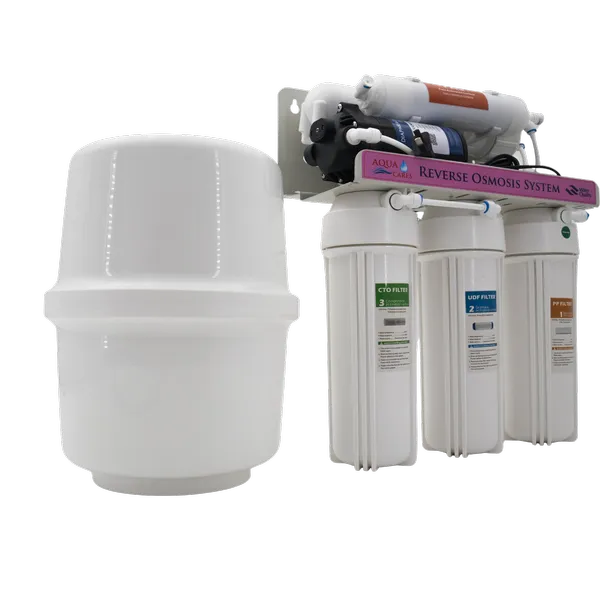

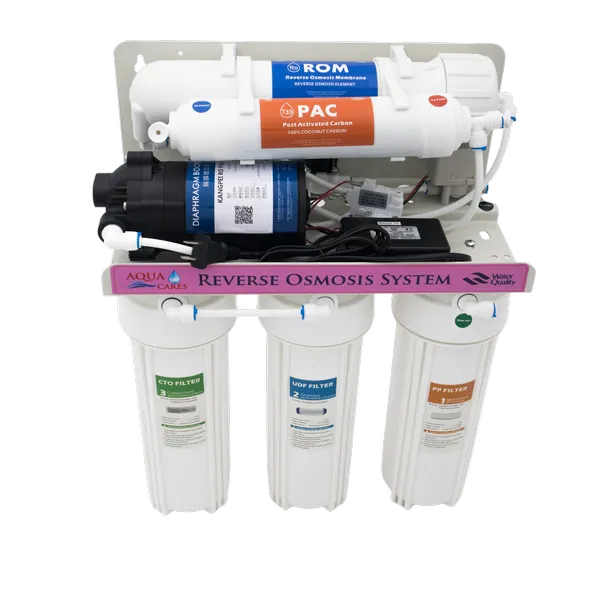

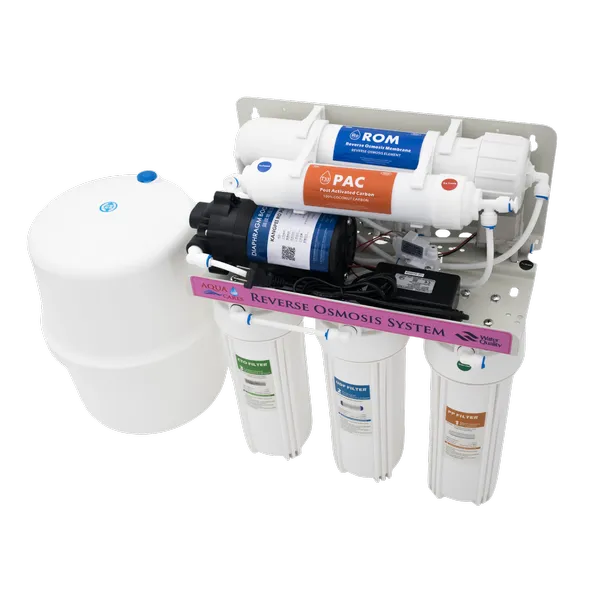

Reverse Osmosis System RO-90G

Reverse Osmosis System RO-90G

A five-stage reverse-osmosis water purifier designed to provide ambient drinking and cooking water for homes and offices. Its 90 GPD membrane delivers a rated capacity of approximately 341 L/day, while the coordinated all-white housings give the system a clean, consistent appearance. It is suitable for city water and, subject to water testing and appropriate pretreatment, borehole or deep-well water.

Five-Stage Filtration Process

1. PP Sediment Filter – Helps reduce sand, rust, scale, sediment and suspended particles.
2. UDF Granular Activated Carbon – Helps reduce chlorine, unpleasant odors and organic impurities.
3. CTO Carbon Block – Provides additional chlorine, taste and odor reduction while helping protect the RO membrane.
4. 90G RO Membrane – Provides fine membrane separation that reduces dissolved salts, TDS and a broad range of dissolved contaminants.
5. T33 Post-Carbon Filter – Provides final taste and odor improvement before dispensing.

Key Features

• Five-stage PP + UDF + CTO + RO + T33 filtration
• 90 GPD rated capacity, approximately 341 L/day
• All-white filter housings
• 3.2-gallon (approximately 12 L nominal) pressure tank
• Purified water to wastewater ratio of approximately 1:2 to 1:3, depending on incoming water quality
• 220 V, 50 Hz electrical supply with 36 W rated power
• Operates at 1–4 bar inlet pressure
• Suitable for water temperatures from 5–50°C
• Compact under-sink installation

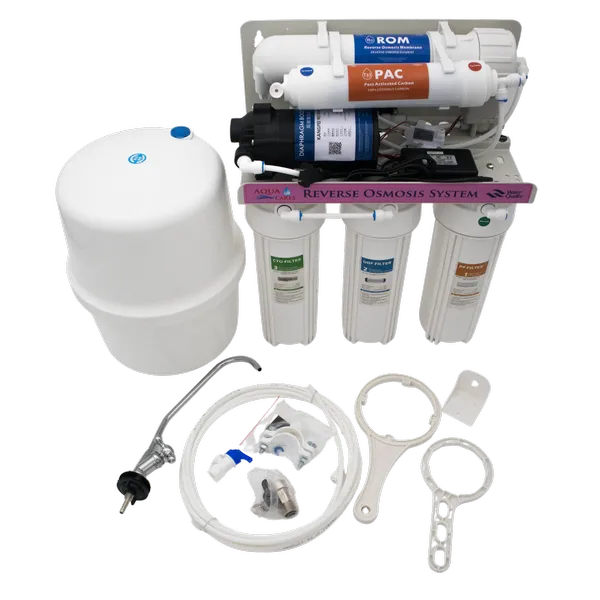

Included Accessories

• 3.2-gallon (approximately 12 L nominal) pressure tank
• 5 metres of PE water pipe
• Filter-housing wrench
• Connector
• 3-way ball valve
• Purified-water faucet
• Installation fittings

Recommended Filter Replacement Schedule

Replacement intervals vary according to incoming water quality and daily usage.

Warranty: 1-year warranty covering manufacturing defects, including applicable parts and repair service.

Important: This reverse-osmosis system requires electricity and produces wastewater during membrane filtration. Flush new filters and the storage tank thoroughly before first use.
